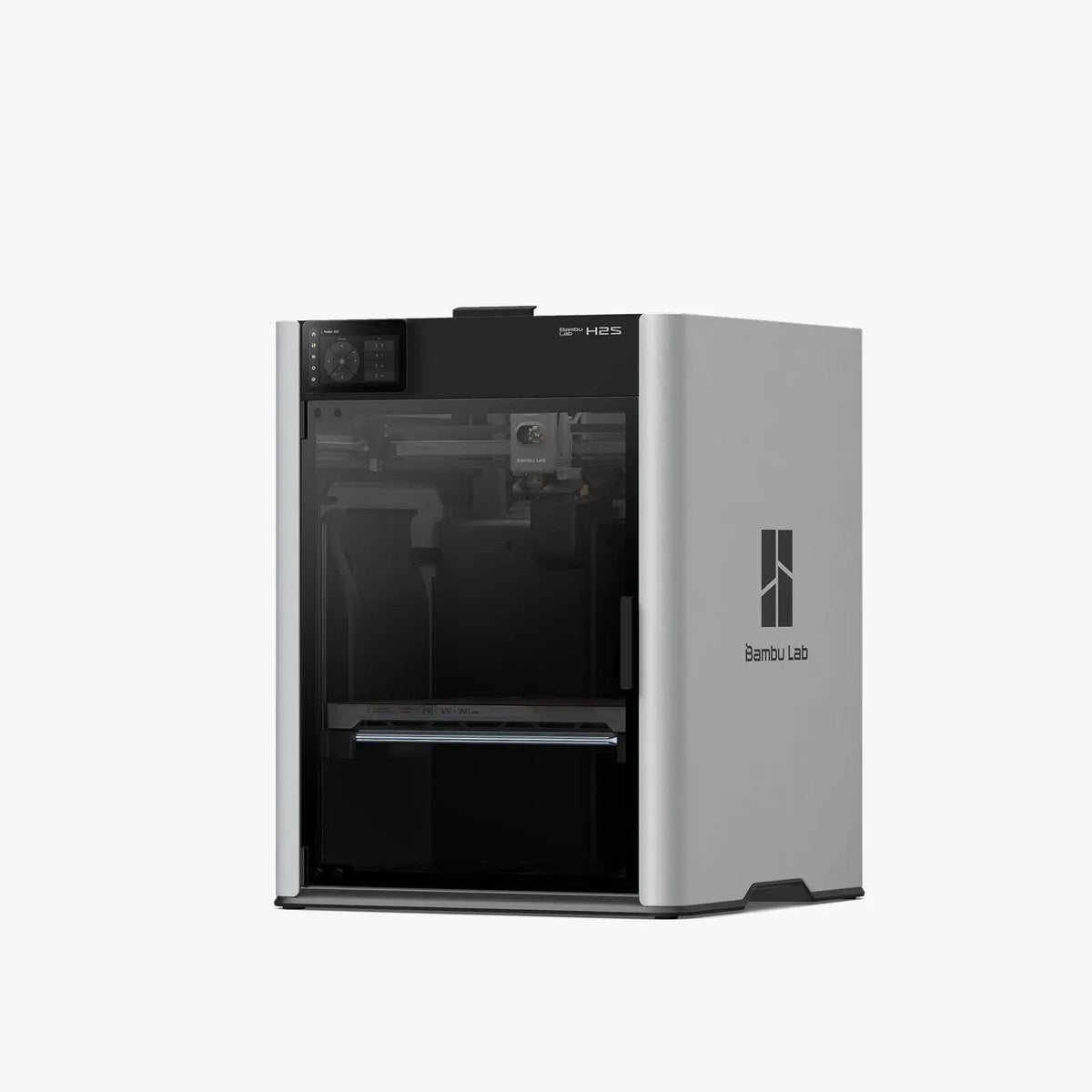

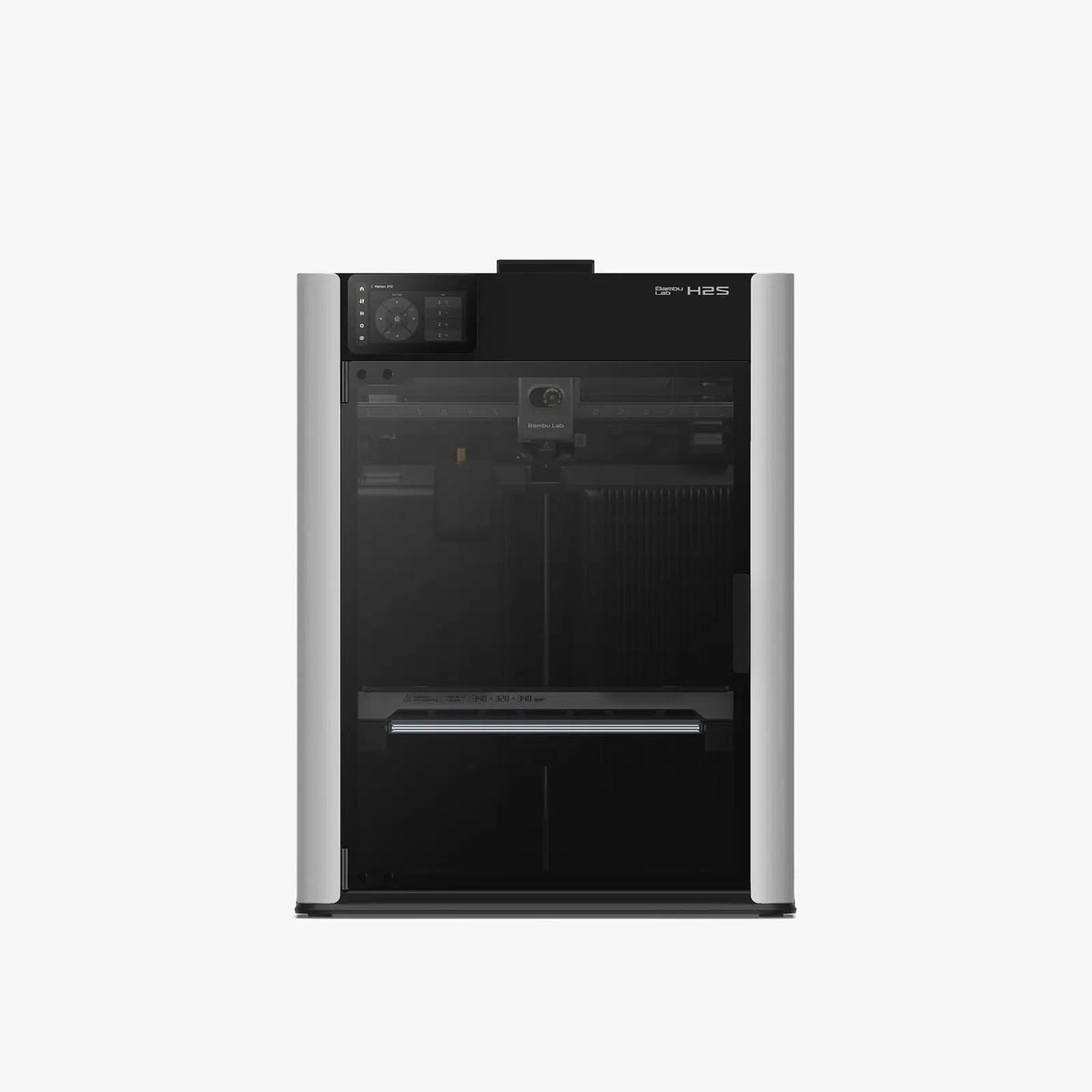

Bambu Lab H2S large-format 3D printer for personal manufacturing

The Bambu Lab H2S is a large-format 3D printer built to produce accurate functional parts, support engineering materials, and streamline high-speed desktop manufacturing. It combines motion calibration, AI-assisted monitoring, thermal control, and safety systems in a rigid all-metal platform.

Bambu Lab H2S overview and main highlights

The H2S is positioned as a personal manufacturing hub for users who need more than a general-purpose printer. Large build capacity, high-temperature material support, and automated monitoring make the machine suitable for prototypes, fixtures, end-use components, and repeatable multi-material workflows.

Personal manufacturing hub for functional production

The Bambu Lab H2S is designed to bridge the gap between desktop convenience and production-focused capability. The printer combines precision mechanics, thermal stability, and intelligent checks so users can move from concept parts to fit-critical assemblies with less manual correction.

High accuracy for fit-critical 3D printed parts

Mechanical deviation correction

The H2S addresses mechanical wear and long-term variance with the Vision Encoder⁽¹⁾. Described as a first in the industry, the system enables distance-independent motion accuracy under 50 μm and automatically compensates for mechanical drift during calibration to maintain consistent performance over time.

Hole and contour compensation for better part fit

Bambu Lab Auto Hole/Contour Compensation⁽²⁾ reduces printing tolerances for hole dimensions. This helps users design parts for shafts, bearings, and fasteners with more predictable fit and less trial and error.

Engineering filament readiness

A 350 °C hotend and 65 °C actively heated chamber allow the H2S to process the full Bambu material range, from PLA and PETG through to PC and PPA. Closed-loop fan control and precise thermal management help reduce warping and improve layer adhesion, especially on demanding engineering materials.

Vibration compensation during high-speed printing

Active Vibration Compensation works in real time to neutralize micro-vibrations and resonance. The result is improved surface quality and dimensional consistency when printing at higher speeds.

Examples of functional printed applications

The Bambu Lab H2S is presented for practical end-use and prototype work across a range of materials. Examples shown include a Seed Starter: PA6-GF, Go-Kart Frame: PAHT-CF, and RC Plane: PLA Tough+, illustrating how the printer can support reinforced engineering parts as well as lighter structural builds.

Seed Starter: PA6-GF Go-Kart Frame: PAHT-CF RC Plane: PLA Tough+

AI monitoring and smart print protection

20,000 checks per second for extrusion control

Bambu Lab’s proprietary PMSM servo system performs 20 kHz resistance and position sampling. This stabilizes extrusion while actively detecting clogs or grinding in real time.

23 sensors and 3 cameras for live monitoring

The H2S uses a vision system with 23 sensors and 3 cameras to monitor print behaviour as it happens. AI-driven checks identify clumping, spaghetti, and purge chute issues before they lead to failed prints, while the same system also supports Live Spatial Alignment and Vision Encoder functions for calibration and positional accuracy.

AI pre-flight checklist before each print

Before starting a job, the printer runs a system check that includes chamber inspection and build plate identification. This helps catch setup issues early and supports more consistent print preparation.

Adaptive airflow and filtration for different material temperatures

The flap switch airflow and filtration system changes behaviour based on the print environment. For high-temperature materials, the sealed chamber recirculates internal air to stabilise conditions for larger engineering parts; for low-temperature materials, the top vent opens to bring in cool air while maintaining filtered exhaust, which suits PLA and PETG.

Large build volume and faster throughput

Maximum build space for bigger parts

With a 340 × 320 × 340 mm build volume, the H2S offers the largest print space in the Bambu Lab lineup. The larger envelope supports taller prototypes, larger assemblies, and more efficient batch layouts.

Higher extrusion force for faster, more reliable printing

The PMSM servo extrusion system provides 67% more extrusion force and supports ultra-high-speed printing. According to the provided information, this can reduce print times by up to 30% while maintaining print quality.

Integrated safety and privacy-focused operation

Built-in fire and emergency safeguards

The printer includes five flame sensors that continuously monitor for fire risks and trigger alerts when needed. A flame-retardant chamber adds passive protection, and an emergency stop provides immediate manual shutdown when required.

Cloud, offline, and developer connectivity options

The H2S supports cloud connectivity, complete offline use, and Developer Mode for advanced integrations. This setup allows connected workflows when needed while preserving local operation without an internet connection.

Ease of use, low noise, and durable construction

Quick-swap nozzle design

Tool-free nozzle changes allow fast material and setup adjustments. The quick-swap approach simplifies maintenance and makes routine changes more convenient.

Low operating noise for shared environments

Active Motor Noise Canceling keeps printer noise below 50 dB. That lower sound level makes the H2S better suited to shared studios, classrooms, offices, and workshop spaces where noise matters.

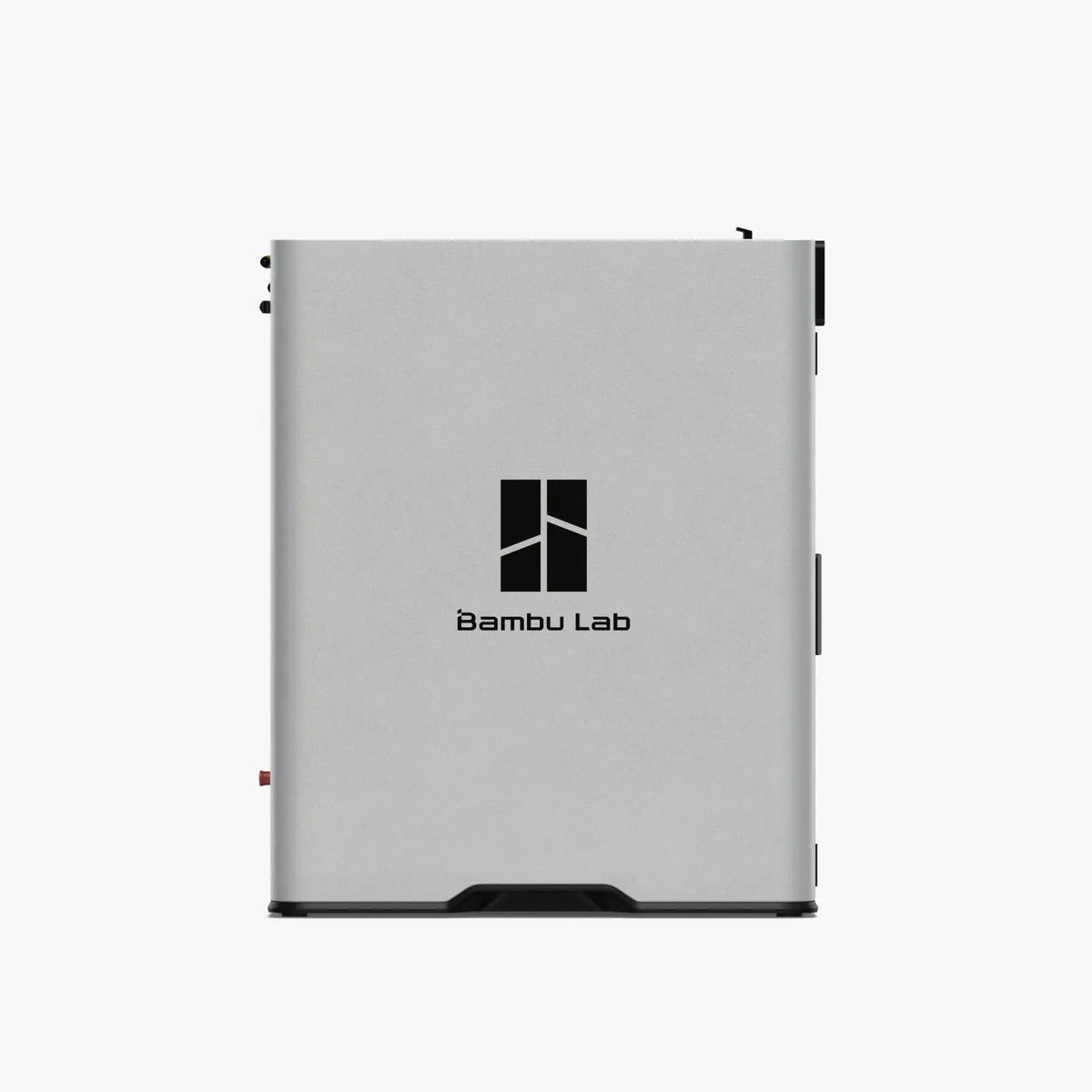

All-metal die-cast body for stability

A rigid die-cast aluminium chassis supports stability and accuracy during high-speed printing. The metal structure is intended to help maintain alignment and motion consistency under demanding operating conditions.
