Spectrum PA6 Neat NT

High temperature polyamide

Filament Spectrum PA6 Neat NT is a new, high-temperature PA6-based construction material in natural color. A major feature of the PA6 Neat is its increased mechanical strength as compared to other plastics. The material also features exceptional thermal properties, chemical resistance to oils and lubricants, relatively high resistance to corrosion stimulators and good electrical insulation properties as compared to unmodified PA6 or PA66.

Parts made of Spectrum PA6 Neat NT allow for long-term operation at elevated temperatures up to 120°C (20,000h) and up to 160°C for a short-time operation (max. 200h), while maintaining sufficient mechanical properties. Filament PA6 Neat NT is characterized by a low linear processing shrinkage (0.3%) and a reduced water absorption (<0.3%, 23 ° C / 24h). The above features make it an excellent filament for a professional user to make solid prints.

To achieve the very attractive properties of PA6 Neat NT, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.

Tip: It is recommended to print using a heated chamber.

Key features:

• low linear processing shrinkage (0.3%)
• high temperature up to 160°C for short-time operation (max. 200h)
• high temperature up to 120°C for long-time operation (20,000h)
• heat distortion temperature – HDT At 90°C (ISO 75)
• water absorption below 0.3% (23°C / 24h)
• high creep resistance
• good tribological properties, including dry friction conditions such as in slide bearing
• chemical resistance to lubricants and oils

Applications:

• production of gear wheels and racks, slide bearings, sweep-off gears and guide rolls operated in elevated temperatures up to 120°C on a long basis and up to 160°C on a short-time basis
• all types of ring and plate seals with an increased chemical and corrosion resistance
• end-use parts
• tooling
• functional prototyping
• industrial modeling

Packaging

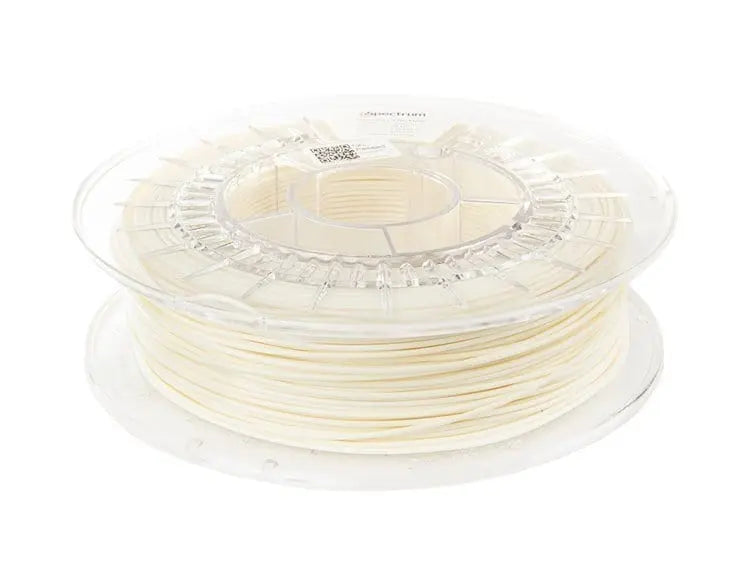

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed in an aluminum vacuum bag with ZIP lock with a moisture absorber. Whole product packed in the original, filled Spectrum Filaments packaging.

VERIFY YOUR SPOOL – the most precise quality

Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly large impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axis with ±0.8µm accuracy, what allows to obtain a high-quality final product. As has proof of this, Spectrum Filaments has introduced, as one of the few manufacturers in the world, the possibility of presenting online, individually for each manufactured spool:

• the course of diameter on the entire length of the spool,
• mean diameter,
• ovality,
• standard DETOUR.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.

General information
Color Natural
Spectrum color name Natural
Diameter 1.75mm
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.14 g/cm³
Net weight 750g
Total weight 1150g
Recommended print settings
Printing temperature 250-280°C
Heated bed necessary
Heated bed temperature 60-80°C
Printing speed 30-70mm/s
Closed chamber Zalecana
Dimensions of the spool
Outer diameter 200mm
Width 55mm
Inner diameter 52mm
Empty spool weight ± 220g
